1.Pure sine wave output
2.Compatible with multiple usage scenarions
3.Lithium-on cells
4.Multiple safety protections
5.Mulit-port high-power output and input
6.LCD display

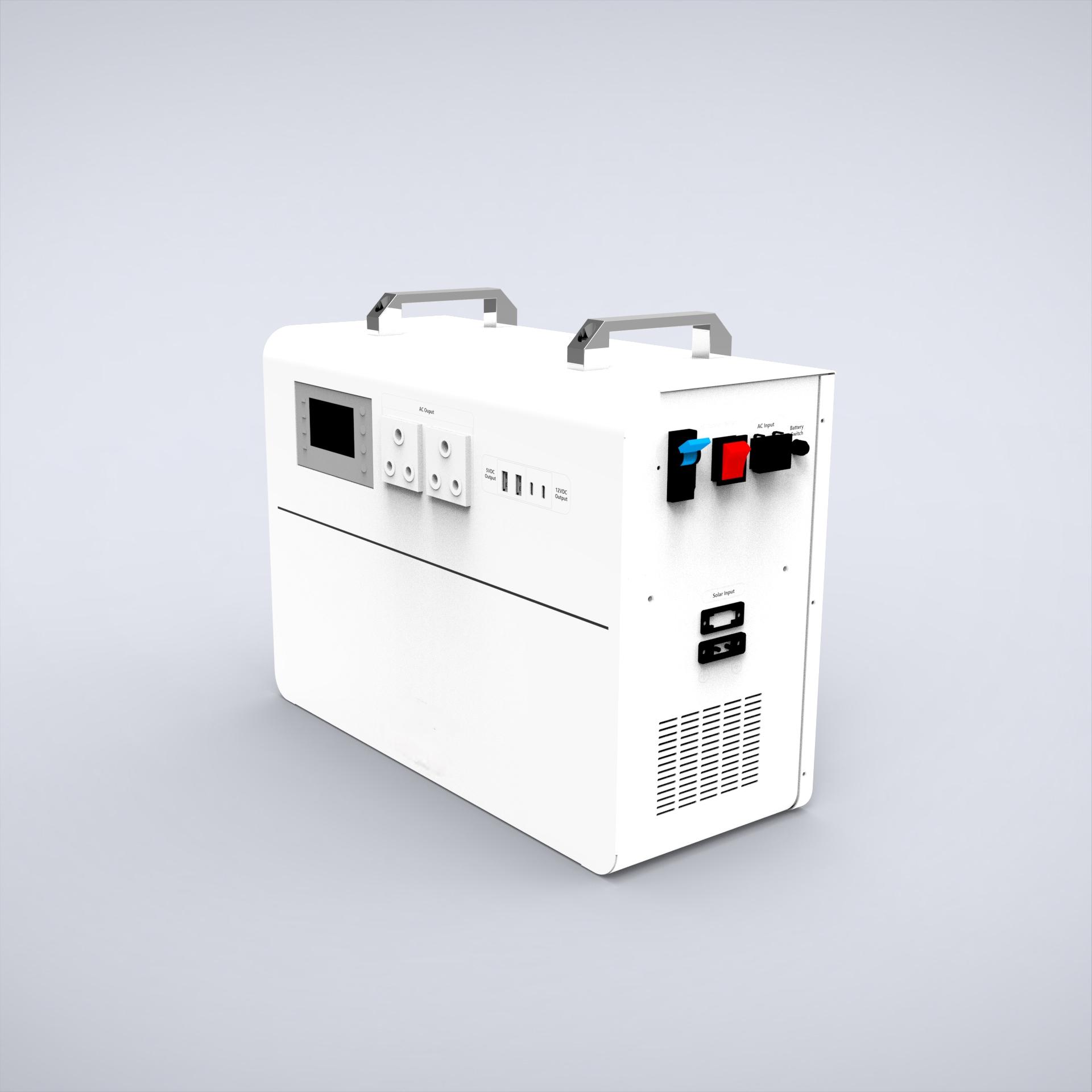

| PVG1 Pro | ||
Product Information | Product Capacity | 1280Wh(25.6V 50Ah) |
| Certified | CE LVD(IEC62109), UN3480 | |
| Product Size | 471*190*359mm | |
| Cycle Life | 3000 times + | |
| Material | SPCC | |
| Weight | 24kg | |
| Accessories | Great South African Charging Cable | |
| Output Port | AC Output | 220-230VAC，50HZ/60HZ 4.5A，1000W(MAX) |
Usb-A Port (×2) | QC3.0: 3.6V ~ 6.5V@2A, 5V~9V@2A | |
9V ~12V@1.5A(MAX=18W) | ||
Usb-C Port (×2) | QC4.0+: 5V=3A,9V=3A,12V=2.25A(MAX=27W) | |
Input Port | Max input power (PV+AC) | 760W |
Max PV input power/current (PV only) | 760W / 30A | |
Max input power/current (AC only) | 600W / 25A | |
Max input DC current | 35A | |
Default PV input power/current | 380W/15A (Adjustable) | |
Default AC input power/current | 380W/15A (Adjustable) | |
AC Input Voltage Range | 190-250VAC, 50HZ/60HZ | |
DC Input Voltage Range | 25.6V | |
PV Input Voltage Maximum | 180V | |
| Battery Information | Battery Type | Lithium iron phosphate |
Protective Function | Overvoltage protection, undervoltage protection, overcurrent | |
protection, short circuit protection, temperature protection | ||
Discharge Temperature | -20~60°C | |
Charge Temperature | 0~55°C | |
Working Humidity | <90 %RH | |
Storage Humidity | <90 %RH | |

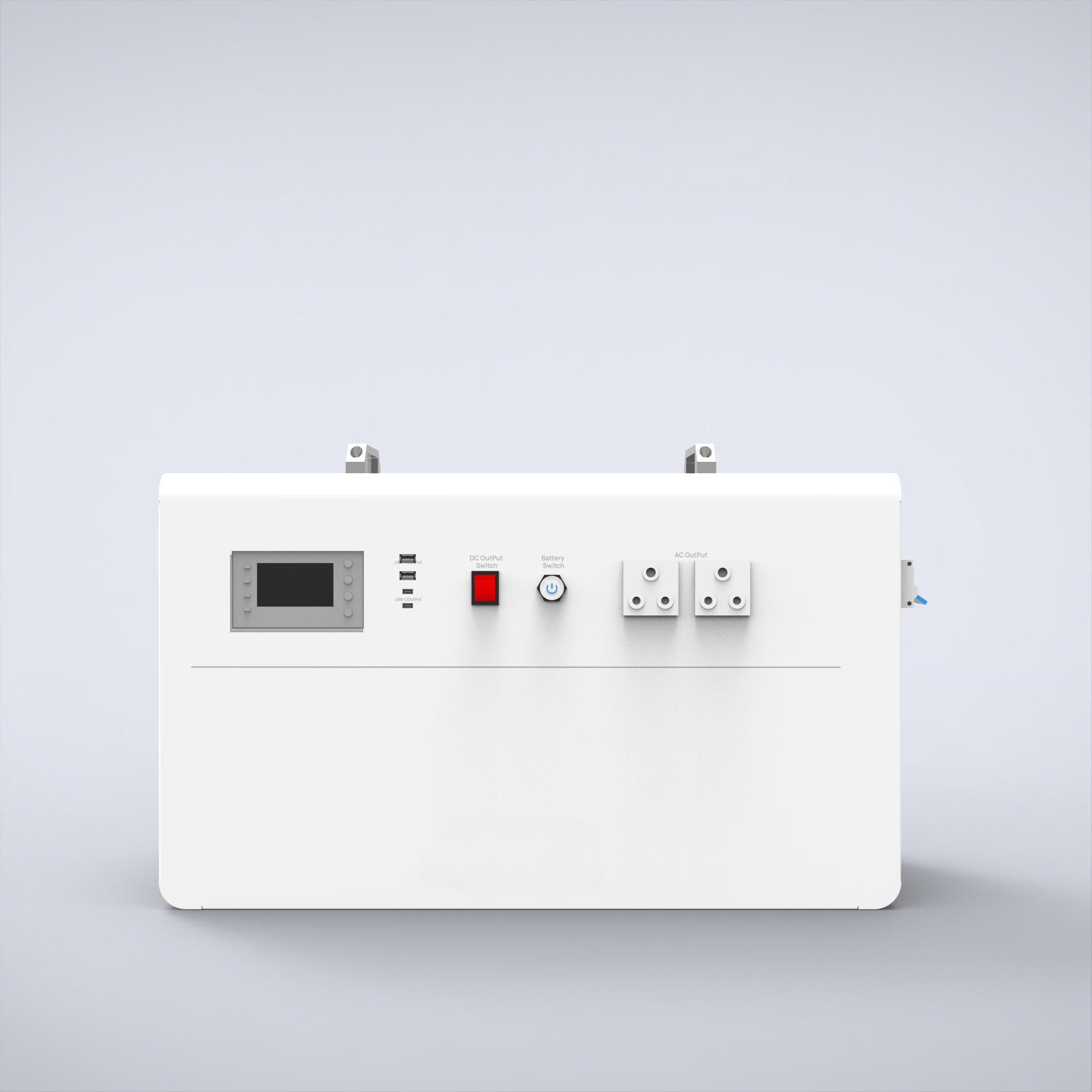

PVG2 Pro | ||
| Product Information | Product Capacity | 2560Wh(25.6V 100Ah) |
Certified | CE LVD(IEC62109), UN3480 | |
Product Size | 680*270*440mm | |
Cycle Life | 3000 times + | |
Material | SPCC | |
Weight | 47.5kg | |
Accessories | Great South African Charging Cable | |
| Output Port | AC Output | 220-230VAC，50HZ/60HZ 9A，2000W(MAX) |
Usb-A Port (×2) | QC3.0: 3.6V ~ 6.5V@2A, 5V~9V@2A | |
9V ~12V@1.5A(MAX=18W) | ||
Usb-C Port (×2) | QC4.0+: 5V=3A,9V=3A,12V=2.25A(MAX=27W) | |
| Input Port | Max input power (PV+AC) | 1600W |
Max PV input power/current (PV only) | 1500W / 60A | |
Max input power/current (AC only) | 800W / 30A | |
Max input DC current | 65A | |
Default PV input power/current | 800W/30A (Adjustable) | |
Default AC input power/current | 800W/30A (Adjustable) | |
AC Input Voltage Range | 190-250VAC, 50HZ/60HZ | |
DC Input Voltage Range | 25.6V | |
PV Input Voltage Maximum | 180V | |
| Battery Information | Battery Type | Lithium iron phosphate |
Protective Function | Overvoltage protection, undervoltage protection, overcurrent | |
protection, short circuit protection, temperature protection | ||
Discharge Temperature | -20~60°C | |
Charge Temperature | 0~55°C | |
Working Humidity | <90 %RH | |
Storage Humidity | <90 %RH | |

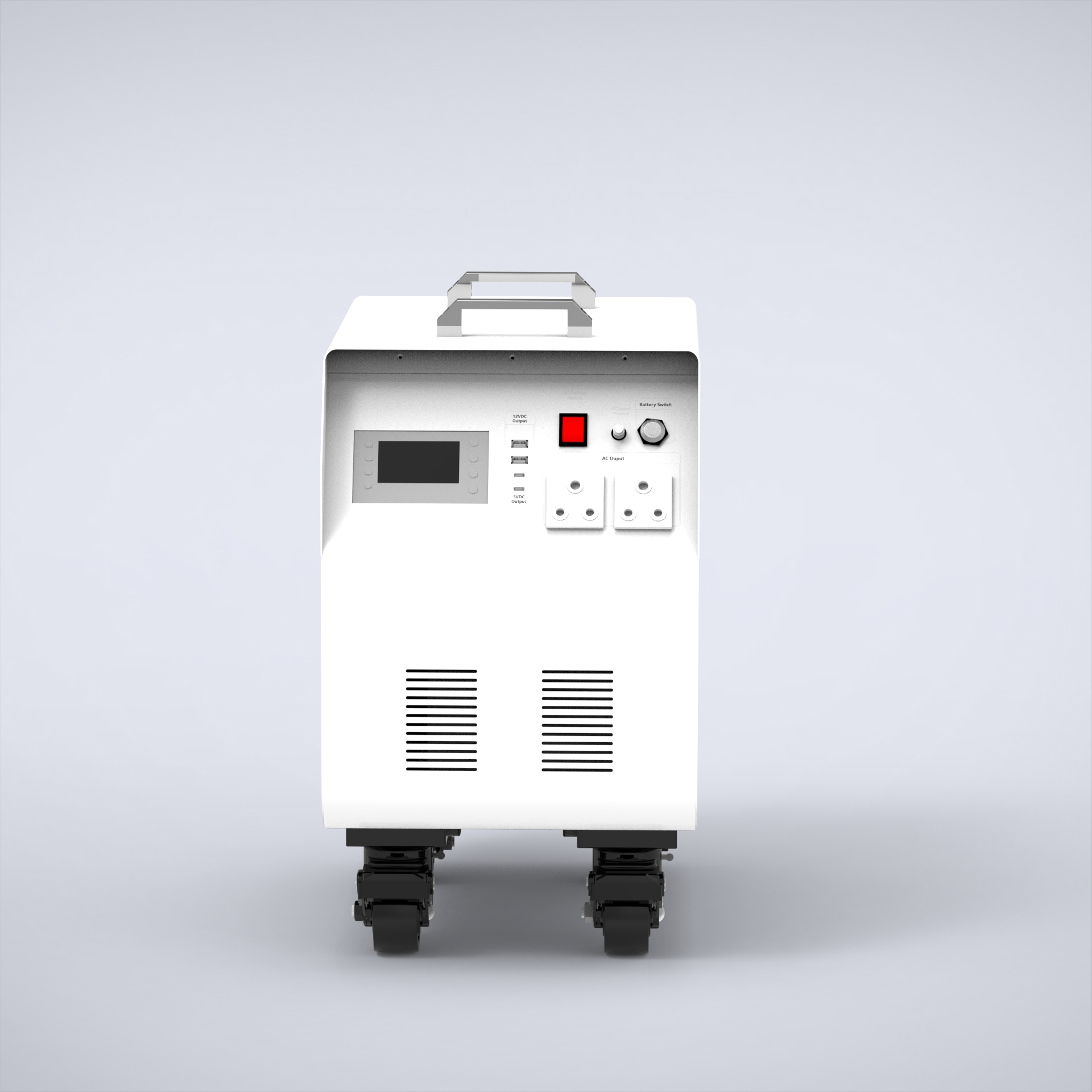

| PVG3 | ||
| Product Information | Product Capacity | 3072Wh(25.6V 120Ah) |
Certified | CE LVD(IEC62109), UN3480 | |
Product Size | 530*332*550mm | |
Cycle LiCfeycle Life | 3000 times + | |
Material | SPCC | |
Weight | 49kg | |
Accessories | Great South African Charging Cable | |
| Output Port | AC Output | 220-230VAC，50HZ/60HZ 12A，3000W(MAX) |
Usb-A Port (×2) | QC3.0: 3.6V ~ 6.5V@2A, 5V~9V@2A | |
9V ~12V@1.5A(MAX=18W) | ||
Usb-C Port (×2) | QC4.0+: 5V=3A,9V=3A,12V=2.25A(MAX=27W) | |
| Input Port | Max input power (PV+AC) | 1600W |
Max PV input power/current (PV only) | 1500W / 60A | |
Max input power/current (AC only) | 1000W / 40A | |
Max input DC current | 65A | |
Default PV input power/current | 800W/30A (Adjustable) | |
Default AC input power/current | 800W/30A (Adjustable) | |
AC Input Voltage Range | 190-250VAC, 50HZ/60HZ | |
DC Input Voltage Range | 25.6V | |
PV Input Voltage Maximum | 180V | |
| Battery Information | Battery Type | Lithium iron phosphate |
Protective Function | Overvoltage protection, undervoltage protection, overcurrent | |
protection, short circuit protection, temperature protection | ||
Discharge Temperature | -20~60°C | |
Charge Temperature | 0~55°C | |
Working Humidity | <90 %RH | |
Storage Humidity | <90 %RH | |
