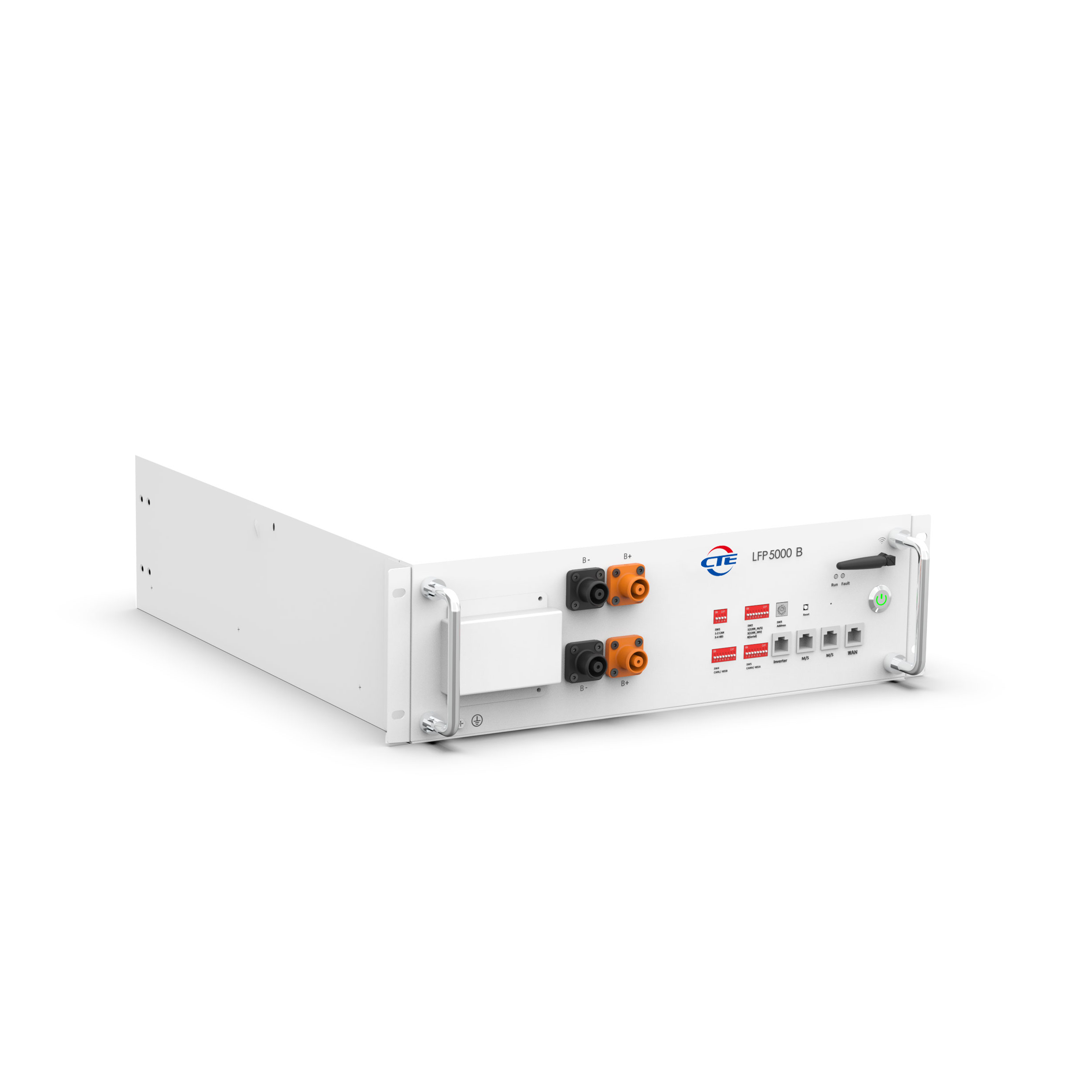

CTE-LFP 5000B
1.>6000
Cycle Life@25°C
2.Automatic Wake-up Function
Under off-grid System Environment
3.Smart BMS
Self-developed BMS
4.Remote Monitoring
Self-developed APP
5.Multiple Safety Protection
Relay, DC Breaker
6.New&Old Batteries can be used in together
Connect in Parallel
7.Parallel& Series
Assemble freely in series or parallel Up to 16S/16P
8.Voltage Balancing
Voltage balancing between battery cells&battery pack
| Model | LFP 5000B | |
Total Energy* | 5.1kWh | |
Usable Energy(DC)* | 4.6kWh | |
Peak Power(Only Discharge) | 6kW for 3s | |
Voltage | 48~56Vd.c | |
Constant Current(Only Discharge) | 80A | |
Nominal Voltage | 51.2Vd.c | |
Nominal Current | 60A | |
Max. Charge Voltage | 57.6Vd.c | |
Weight | 45kg | |
Dimension(mm)（L*W*H) | 500*442*133mm | |
Max. Recommended DOD | 90% | |
Operating Condition | Indoor | |
Operating Temperature | From 0~50 ℃ | |
Charge | From -10~55 ℃ | |
WIFI Frequency Rang charge | 2400MHz~2483MHz | |
| Humidity | ＜60%(No condensed water) | |
Over Voltage Category | II | |
| Cooling Type | Natural cooling | |
Case Material | Metal | |
Color | White | |
| Installation | Wall mounting/Ground Installation | |
IP Rating | IP 20 | |
Protective Class | I | |
Max. Connection Number | 16P/16S | |
Warranty | 10 years | |
Life Span | >15 years | |
Protection Mode | Dual hardware protection | |
Battery Protection | Cell UL 1973 | |
Safety | Over-current/Over-voltage/Short circuit/ Under-voltage/Over temperature CE/TUV | |
Hazardous Material Classification | 9 | |
Transportation | UN 38.3 | |
*Testing conditions based on tempe rature 25 ℃ at the beginning of life. *Total Energy/Usable Energy measured under specific conditions from CTE 0.2C CC-CV | ||
