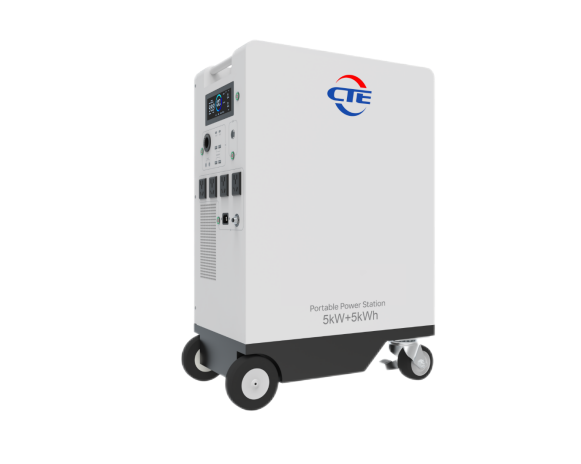

1.Thisintegrated portable power supplywith acapacity of
5120Wh issuitable forany occasion.
2.High-performance lihiumiron phosphate battery cells
ensurelong battery lfe andprovide abundant energy for
outdoor activities.
3.Combine with photovoltaic solar energy storoge as an
emergency powersourcefor home energy storage.
| Model | PVG5 |
AC Input | |
AC Voltage | 230V |
Grid Frequency | 50Hz/60Hz |
Input Power | 5000W |
AC Output | |
AC Voltage | 230V |
Grid Frequency | 50Hz/60Hz |
Output Power | 5000W@25 ℃ |
Solar Input | |
Max. PV Input Power | 6000W@25℃ |
Max. PV Input Current | 80A |
MPPT Voltage Range | 120~430V |
DC Output | |
DC*2 Output Power | 12V*5A |
QC3.0 0utput | |
USB*4 0utput Power | 18W*4 |
PD Output | |
Type-C*2 Output Power | 100W*1 / 60W*1 |
Battery Charging | |
Max. Solar Charging Current | 80A |
Max. AC Charging Power | 2500W |
Battery Module | |
Cell Type | LFP |
Battery Energy | 5120Wh |
Rated Voltage | 51.2V |
Rated Capacity | 100Ah |
System | |
Dimensions | 680*450*280mm |
Weight | 60kg |
IP | IP20 |
Operating temperature | Charging: 0-55 ℃, discharging: -20~55 ℃ |
Safety Certification | IEC61629、IEC61000、UN38.3、CE |
