1.>6000
Cycle Life@25°C
2.Automatic Wake-up Function
Under off-grid System Environment
3.Smart Boost BMS
Self-developed BMS
4. Remote Monitoring
Self-developed APP
5.0.6C
Discharging Rate
6.New&Old Batteries can be used in together
Connect in Parallel
7.Parallel
Assemblly Freely in Parallel Up to 16P
8. Voltage Balancing
Voltage Balancing between Battery Cells&Battery Pack

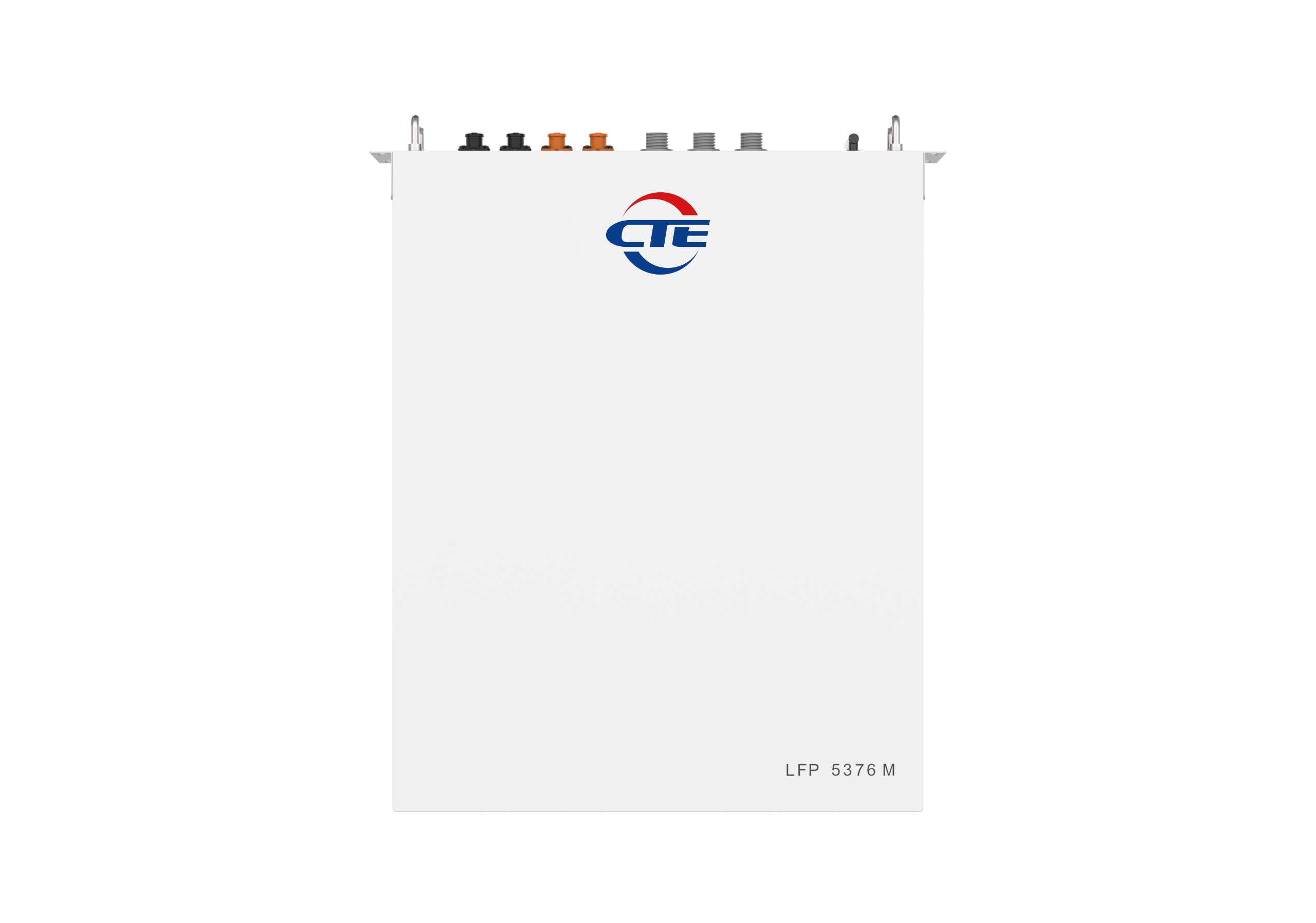

Model | LFP 5376M | |
Total Energy* | 5.37kWh (19.2V,280Ah) | |
Usable Energy(DC)* | 5.0kWh | |
Nominal Discharge/Charge Power | 3.0kW | |
Peak Power(Only Discharge) | 6kW for 3s | |
Nonimal Current | 60A | |
Peak Current | 100A for 3s | |
Operator Voltage Range | 44.8~57.6V | |
Nonimal Voltage | 51.2Vd.c (Boost 19.2 V to 51.2 V) | |
Weight | 46kg | |
Dimension(mm)(L*W*H) | 580*443*135mm | |
Max.recommended DOD | 90% | |
Operating Temperature | Charge | From 0~50℃ |
Discharge | From 0-55℃ | |
WIFI Frequency Range | 2400MHz~2483MHz | |
Humidity | ＜60% | |
Over Voltage Category | II | |
Cooling Type | Natural cooling | |
Case Material | Metal | |
Color | White | |
Installation | Wall mounting/Ground Installation | |
IP Rating | IP 65 | |
Protective Class | I | |
Max. Connection Number | 16P | |
Warrnty | 10 years | |
Life Span | >10 years | |
Communication | CAN/RS485 | |
Protection Mode | Dual hardware protection | |
Battery Protection | Over-current/Over-voltage/Short circuit/Under-volltage/Over temperature | |
Safety | CE/TUV | |
Hazardous Material Classification | 9 | |
Transportation | UN 38.3 | |
